  • 網站首頁 ? 商品詳情 ? TELEX導播通話系統BTR-800,演播室無線內部通話系統MCE325,全雙工無線內通系統

    TELEX導播通話系統BTR-800,演播室無線內部通話系統MCE325,全雙工無線內通系統
    上一個商品 下一個商品

    市場價: 15540.00
    本店價: 12950.00
    商品編號:M004149
    我要買    庫存有貨,立即發出
    分享
    商品滿意度:
    5分
    (共0個評論)
    商品描述
    商品參數
    • 品牌:TEXEX
    • 工程解決方案分類:公共廣播
    • 貨號:834708

    美國TELEX導播通話系統BTR-800,演播室無線內部通話系統MCE325,全雙工無線內通系統

    三個指揮部全雙工內部通話方案:其中1個無線方案,2個有線方案



    美國TELEX專業全雙工通話系統三個配置方案如下:


    1.雙工無線內通系統價格(配無線腰包):合計:175795元
    MCE325主站:9035元 ,MCS325主站音箱單元:3960元,MCP-1支架:1850元,MCP-90-18鵝頸話筒:1920元,BTR800RTS基站*3臺:38260元/臺,TR800RTS無線腰包*3臺:12950元/臺,PH88R耳機(包括指揮室主站耳機)*4個:1350元。

    2.雙工有線內通系統價格(配有線腰包):合計:52195元
    MCE325主站:9035元 ,MCS325主站音箱單元:3960元,MCP-1支架:1850元,MCP-90-18鵝頸話筒:1920元,PS15電源*3臺:6100元/臺,MCP2電源安裝支架*3套:1450元/套,BP319有線腰包*3臺:2460元/臺,PH88R耳機*4個:1350元。

    3.雙工有線內通系統價格(配有線面板):合計:56545元
    MCE325主站:9035元 ,MCS325主站音箱單元:3960元,MCP-1支架:1850元,MCP-90-18鵝頸話筒:1920元,MRT327通話分站*3臺:5650元/臺,MCS325主站音箱單元*3個:3960元/個,MCP-1支架*3套:1850元/套,PH88R耳機*4個:1350元。



          創新、優越的設計、高可靠性及耐用性,這些都是Telex RadioCom無線內部通訊系統的特點.Telex RadioCom無線內部通訊系統是在各類應用中最權威的無線通訊設備。RadioCom無線產品在世界各地是非常成功的. 應用領域包括電視廣播、太空科技、工業、劇院、體育運動、流動演出、軍事,學校、教堂和許多其他數之不盡的范圍.
    Telex RadioCom獲得了多項創新發明獎項,例如RadioCom BTR-800 兩通道可調頻率的無線內部通訊系統,這些發明讓使用者能隨處走動的同時仍可保持有線系統通話的品質和可靠性.Telex加密的內部通訊技術已經被普遍使用于各高等院校.特別是NFL (美國國家職業橄欖球聯盟)的訓練. 同樣的專利的加密技術還在世界各地的國家安全和軍用事業上使用。
          BTR-800 無線腰包
    每個基站配 4個腰包。每個BTR-800基站能支持多達4個腰包的全時間訊號傳輸和全雙向操作。多組的基站和腰包系統結合起來,能滿足世界上任何的無線通訊應用。
    靈活的頻率可調性
    BTR-800革新的圖形使用介面 ,可以使440個用戶在頻率中進行選擇 ,頻率選自廠方設定組,或者是選擇以25KHz為增量的任何一個頻率。從18MHz運行視窗中有720個 TX發射和720個 RX接收頻率可供選擇”。
          UHF 操作
    BTR-800²TR-800 和TR-825 在 UHF 段中從470至740MHz 運行?;竞脱僮髟谔厥獾?18MHz 帶寬運行。關于詳細的運作頻道情況,請與客戶服務部聯系。
    免互調的工廠選擇群組 每一臺800系統都具有24個出廠選擇,可互換的群組設置,這允許大部分不很了解產品使用的新用戶在開箱后就能立刻開始使用。Telex己經為您完成所有的工作! 每個腰包都可用兩個頻道對講通話 與BTR-800 的基站的有線連接,可以是2線4線或者是混合線。BTR-800 可以完全和Audiocom ,RTS和clearcom內部通訊有線系統相容。 雙通道操作 每個TR-825 腰包能提供雙通道兩個聲量調節;每個調節器獨立控制每通道的電平。這能讓一邊耳機聆聽制作人員² 另一邊耳機則聆聽技術人員的說話。TR-825可以雙聲道或單聲道兩種模式操作。
    帶繼電器關閉的舞臺通知輸出 每個腰包都具有舞臺通知的特性。用戶的聲音從基站背面的XLR3針輸出。這個訊號不帶電,線路的電平為+8dB,而且是可調整的。一個非常方便的繼電器關閉能夠觸發兩路無線電訊號,IFB導播發送,候演室揚聲器或者一些其他的動態設備。



    TELEX BTR800 and TR800無線內部通話系統

    BTR800
    全雙工方式,一個基站允許接入四個腰包機
    靈活的頻率可調性
    每個腰包都可用兩個頻道對講通話
    UHF操作
    增強的ClearScan頻道自動選擇和圖形使用界面
    免互調的工廠選擇群組
    雙聆聽操作
    TR800
    帶繼電器關閉的舞臺通知輸出
    無線巡回演講(廣播ISO)
    “第五個人”在基站交談或收聽
    智能電源控制
    鍍鎂質的腰包
    兩種電池的選擇
    可拆離的腰包天線

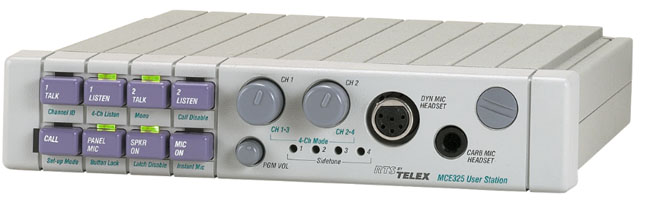

    TELEX MCE325可編程4通道用戶通話主站

    The MCE-325 is a four-channel, programmable intercom station. It may be used as a headset station or, with the addition of the MCS-325 Modular Speaker, as a speaker station. It may be mounted in a console or equipment rack via optional mounting kits. The MCE-325 can be used with either two-wire or four-wire intercom lines, or a combination of both. In the labeling on the MCE-325, references to channels 1, 2, 3, and 4 indicate two-wire lines; references to four-wire A and four-wire B indicate four-wire lines. The MCE-325 can be interfaced to a variety of external devices including external program sources, two-way radios, paging systems, and satellite circuits.
    2 or 4 channel operation
    Call Signaling
    External Device Keying
    Fully-Programmable
    Panel mic and headset mic
    Microphone Limiter
    Remote "Talk Off"
    2 channels of IFB
    2 PGM inputs

    Call Signaling
    Call signaling is accomplished using an inaudible (20 kHz) signal to activate a call indicator LED.
    Remote "talk-off"
    Active, unattended remote station microphones may be deactivated by momentarily injecting an inaudible (24 kHz) signal into the corresponding intercom line. The MCE-325 can send and receive "talk-off" signals.

    VOX circuit
    The MCE-325 may be programmed for voice activation of the microphone.

    Simple IFB
    Program audio assigned to a channel is interrupted during talk.

    External device keying
    External devices, such as two-way radios, speaker mute relays, or paging systems may be activated through key outputs at the auxiliary connector on the rear panel. The key outputs may also be used to expand the simple IFB function, allowing any one of a number of MCE-325 stations to interrupt the program source and talk on the line.

    Microphone Limiter
    The microphone preamplifier circuit contains a limiter, which helps to equalize voice levels.

    Fully programmable
    Retains programming even when power is shut off.

    Instantaneous Auto-Reset
    Instantaneous Auto Reset (IAR), the newest technology in performance and safety, which uses a revolutionary new circuitry that dynamically monitors line fault conditions. Then, when the fault is removed, automatically brings individual power supply channels up.

    Color Grey
    Depth 8" (203.2 mm)
    Height 1.75" (44.5 mm)
    Weight 4.5 lbs (2.04 kg)
    Width 8.2" (208.3 mm)
     Telex MCP-1
    Dual Rack Mount Kit
    G&G Price: $122.00
    Want a better price?
    For Use with SSA-324/SSA-424
     Telex MCP-2
    Dual Rack Mount Kit
    G&G Price: $122.00
    Want a better price?
    For Use with SSA-324/SSA-424
     Telex MCP-3
    Console-Mount Kit
    G&G Price: $138.00
    Want a better price?
    For One-Main Component
     Telex MCP-8
    Side Channels
    G&G Price: $56.00
    Want a better price?


    ?

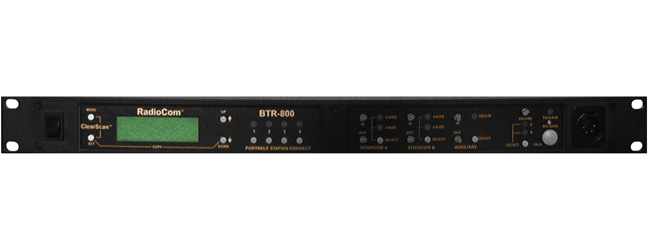

    TELEX BTR800RTS

    BTR800

    The Telex Radiocom BTR-800 UHF wireless intercom system is truly remarkable. The rackmountable BTR-800 transmitter offers a long list of standard features unavailable on other systems, such as: full UHF operation, two intercom-channel access from each of up to (4) duplex beltpacks (#TR825 sold separately), stage announce output with relay closure, wireless talk around (ISO), Enhanced ClearScan, talk/listen headset station and more. With a combination tone code/RF noise squelch and DSP digital audio processing, this wireless transmitter sounds great, even at a great distances! Combine all of that with an easy-to-use graphical interface that lets you get started right out of the box, and you've got the most innovative and versatile intercom system around. The BTR-800 is compatible with Telex, RTS and Clear-Com hardwired communications systems. Call and talk to your sales representative today.
    Note: photo shown with receiver modules, not included.

    TELEX TR-800 RTS腰包:

    TELEX BTR-800基站:

    Description
    TELEX RTS TW INTERCOM BELTPACKS
    BP325 Dual Channel Beltpack
    The BP325 is the most commonly used RTS belt-pack. It offers two independent channels of full-duplex intercom, and provides the necessary amplification to drive mono or stereo format headsets to suit the application. With its comprehensive microprocessor assisted programming it may be configured to suit different situations. Easy to use, lightweight, and compact, it is built to withstand the rigours of life in the professional environment. As well as the standard grey colour, this model is also available in black.

    Features:
    - Stereo or mono operation - User programmable functions, microprocessor assisted - Speak to channels 1 and 2 separately or simultaneously - Separate listen level controls for each channel - Separate Talk buttons with green LED indicator for each channel - Talk buttons offer latching and non-latching modes - Mic amp limiter-circuit protects against overloads and signal distortion - Internal adjustments for side-tone on each channel - Call function allows call signal to be sent and received between stations - Remote 'mic-kill' signal (24kHz) generate/recognition facility - Mono and stereo headphone outlets on bottom panel, 4-pin and 5-pin XLR - Input and loop-through 3-pin XLR sockets on bottom panel - 'Programme' audio input (local belt-pack use only) with dedicated level control - Rugged, lightweight, high impact polycarbonate case

    The operator may adjust the level of channel 1 and 2 in his headset using the two independent volume controls. He or she can communicate on channel 1 and 2 individually or simultaneously using the two separate Talk buttons and may latch the microphone in the open position or choose for it to mute when the channel Talk button is released. The level of the microphone signal (side-tone) heard in the headsets may be adjusted internally. The call-light button may be used to attract the attention of other users on a selected channel. If another operator calls, the red call-light flashes brightly while a green LED identifies which of the two channels is calling. If a microphone elsewhere on the system has been left open in a noisy surrounding, the 'mic-kill' facility on the BP325 can be used to shut down all open microphones on that channel providing the other stations support this feature. Programme audio may be injected into the beltpack via the 'loop-through' 3-pin XLR on the bottom panel. Internal jumpers change the function of the XLR connector and assign programme audio to headphone left, right or both. A dedicated level control allows programme audio to be balanced against communications audio. This facility is local to the BP325 belt-pack only and no other user will hear the programme material. The high bridging impedance of the belt-packs (10,000 ohms typically) ensures that system audio levels are not altered as units are taken in and out of circuit.

    Power: +18 to +35 volts DC
    Dimensions: 96.3(w) x 52.1(d) x 127(h)mm
    Weight: 0.255 kg

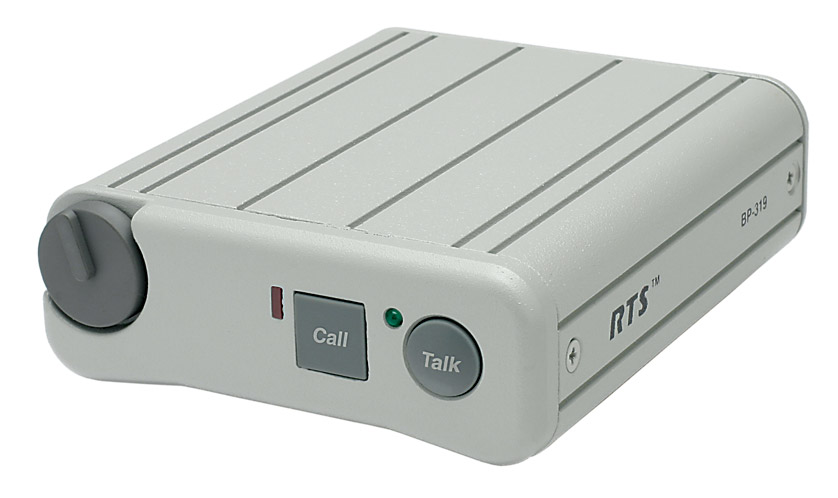

    BP319 Single Channel Belt-Pack
    The recently introduced BP319 belt-pack supercedes the BP318. It is microprocessor controlled and, like its predecessor, it offers a single channel of full-duplex communication. By popular demand, a second XLR connector has been added to allow belt-packs to be looped together. The BP319 is supplied with either a 4-pin or 5-pin XLR headset outlet. The two types are listed below as separate items. As well as the standard grey colour, these models are also available in black.

    Features:
    - Single channel operation - User programmable functions, microprocessor assisted - Level control for headset volume - Talk button offers latching and non-latching modes - Mic amp limiter circuit protects against overloads and signal distortion - Internal adjustment for side-tone - Call function allows call signal to be sent and received between stations - Audible 'incoming call-alert' feature, front panel selectable - Remote 'mic-kill' signal (24kHz) recognition facility, front panel selectable - Headset outlet on bottom panel, 4 or 5-pin XLR (choose when ordering) - Auto-sensing headset outlet detects if a mic is dynamic or electret and will automatically power an electret mic. - Communications in and loop-through sockets on bottom panel (3-pin XLR) - Rugged, water resistant aluminium case

    Pressing the Talk button allows communication with other stations and the operator may latch the microphone in the open position or choose for it to mute when the channel Talk button is released. Audio level in the headset is adjusted with the dedicated volume control. The level of the operator’s own voice heard in the headset (side-tone) may be adjusted with a small screwdriver. Pressing the call button will attract the attention of other operators. If another station calls, the belt-pack’s red LED call light will illuminate. An audible call alert in the headset may be programmed to sound. Mic-kill is a facility which allows all open mics on a communications channel to be switched to mute. It is used to shut down microphones that have been inadvertently left open in noisy surroundings. Suitably equipped master stations generate a 24kHz tone mic-kill tone which the BP 319 can recognise, although it cannot initiate them. In the event of a mic-kill signal being received, if the belt-pack’s microphone is open it will automatically revert to mute until the Talk button is pressed again. Mic-kill recognition may be switched off if necessary.

    Power: +18 to +35 volts DC
    Dimensions: 100.0(w) x 35.0(d) x 115.0(h)mm
    Weight: 0.35 kg

    BP351 Two Channel (Selectable) Belt-Pack
    The recently introduced BP351 beltpack supercedes the BP350. It is microprocessor controlled and, like its predecessor, it can be selected to operate on either of the two available full-duplex intercom channels. By popular demand, a second XLR connector has been added to allow belt-packs to be looped together. The BP351 is supplied with either a 4-pin or 5-pin XLR headset outlet. The two types are listed below as separate items. As well as the standard grey colour, these models are also available in black.

    Features:
    - Two channel (selectable) operation - User programmable functions, microprocessor assisted - Level control for headset volume - Talk button offers latching and non-latching modes - Mic amp limiter-circuit protects against overloads and signal distortion - Internal adjustment for side-tone - Call function allows call signal to be sent and received between stations - Audible 'incoming call-alert' feature, selectable on front panel - Remote 'mic-kill' signal (24kHz) recognition facility, selectable on front panel - Headset outlet on bottom panel, 4 or 5-pin XLR (choose when ordering) - Auto-sensing headset outlet detects if a mic is dynamic or electret and will automatically power an electret mic. - Communications in and loop-through sockets on bottom panel (3-pin XLR) - Rugged, water resistant aluminium case

    The channel-select button allows the operator to decide which of the two available communications channels is active. If simultaneous communications with both channels is required please refer to the BP325 headset station description. Pressing the Talk button allows communication with other stations. The operator may latch the microphone in the open position or choose for it to mute when the channel Talk button is released. Audio level in the headset is adjusted with the dedicated volume control. The level of the operator’s own voice heard in the headset (side-tone) may be internally adjusted with a small screwdriver. Pressing the call button will attract the attention of other operators. If another station calls, the belt-pack’s red LED call light will illuminate. An audible call alert in the headset may be programmed to sound. Mic-kill is a facility which allows all open mics on a communications channel to be switched to mute. It is used to shut down microphones that have been inadvertently left open in noisy surroundings. Suitably equipped master stations generate a 24kHz tone mic-kill tone which the BP 351 can recognise, although it cannot initiate them. In the event of a mic-kill signal being received, if the belt-pack’s microphone is open it will automatically revert to mute until the Talk button is pressed again. The mic-kill recognition may be switched off if necessary.

    Power: +18 to +35 volts DC
    Dimensions: 100.0(w) x 35.0(d) x 115.0(h)mm
    Weight: 0.35 kg





























    TELEX  有線腰包BP319







     代理商:北京藝恒利電子科技有限公司

    TEL:010-58347627,52875915,80502584
